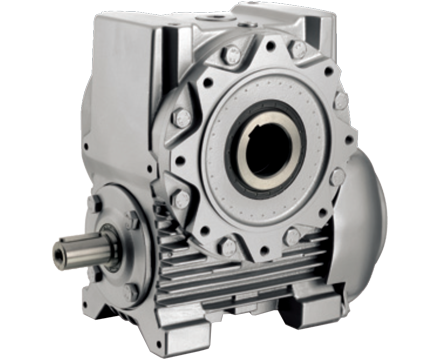

• Worm gear CAVEX

Worm gear CAVEX

Manufacturer: FLENDER

Worm gears with worm concave profile CAVEX are being built with module principle.

  • Power kW - to 800
  • Twisting moment - to 360000
  • Gear-ratio - from 5 to 4600
  • Center distance - from 63 to 630
Order

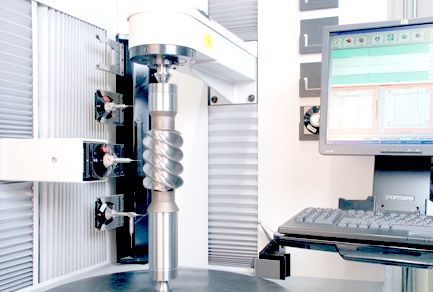

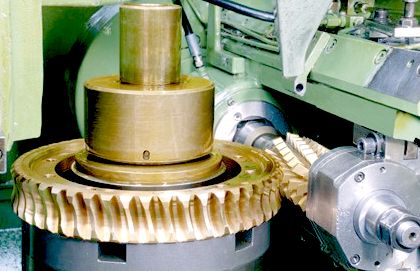

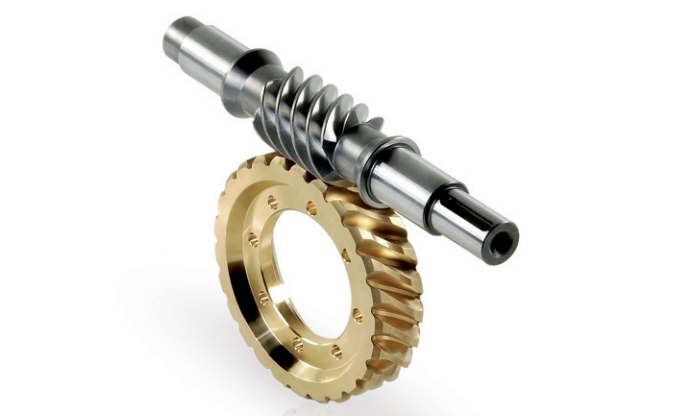

Червячные редукторы Cavex 3.jpg  Червячные редукторы Cavex 2.jpg Червячные редукторы Cavex 1.jpg

Performance

Cavex Worm gear units could performed in the following types:

  • Output shaft could be solid or hollow
  • Input and output shafts are doubleside; reinforced bearings on the output
  • Hollow shaft with shrink disk and involuntary splines
  • Labirinth sealings and taconite sealings
  • Cast-iron and steel housing
  • Pairs with lower backlash
  • Pairs with high precision

Examples

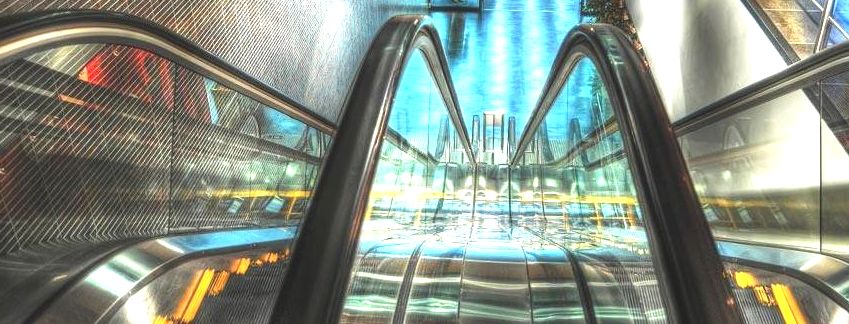

Cavex worm units are being used in escalators and elevators, conveyor lines and others.

привод эскалаторов и лифтов.jpg
